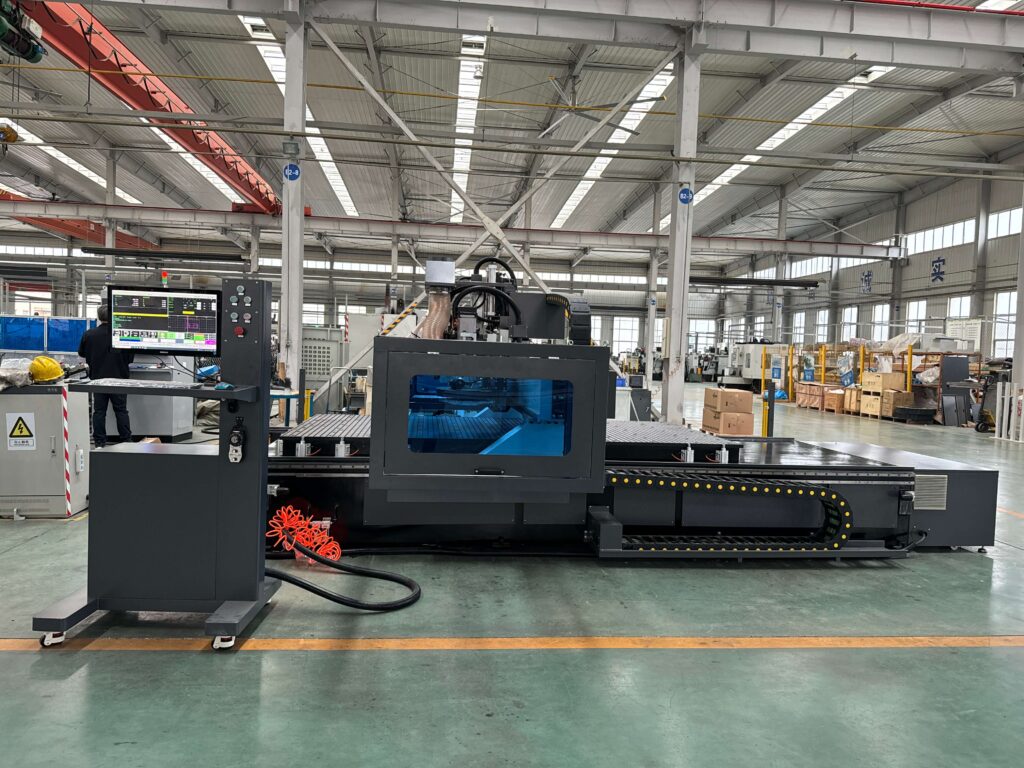

CNC Machining Center D line
The D Line machine is a simple robust, fast and versatile machining center with infinite possibilities in machining work. It is ideal for work on boards: drilling, trimming, nesting, etc… All with great precision provided by a powerful numerical control and servomotors that control and servomotors that control the movement of all its axes.
Features:
- 12HP-16HP Hiteco Spindle 5,000-24,000 RPM
- Drill Unit 7 in vertical , 4 in horizontal , 2 saw
- 0-300 degree independent cutting saw
- Available In 4′ x 8′, 5′ x 10′, 5′ x 12′ Table Sizes
- 8 Position HKS63F Automatic Tool Changing System
- Syntec AC Servos Drive Motors
- Up To 1,800 IPM Rapid Speed
- Planetary Gear Box Drive System
- 12″ Z-Clearance
- 13″ Z Travel

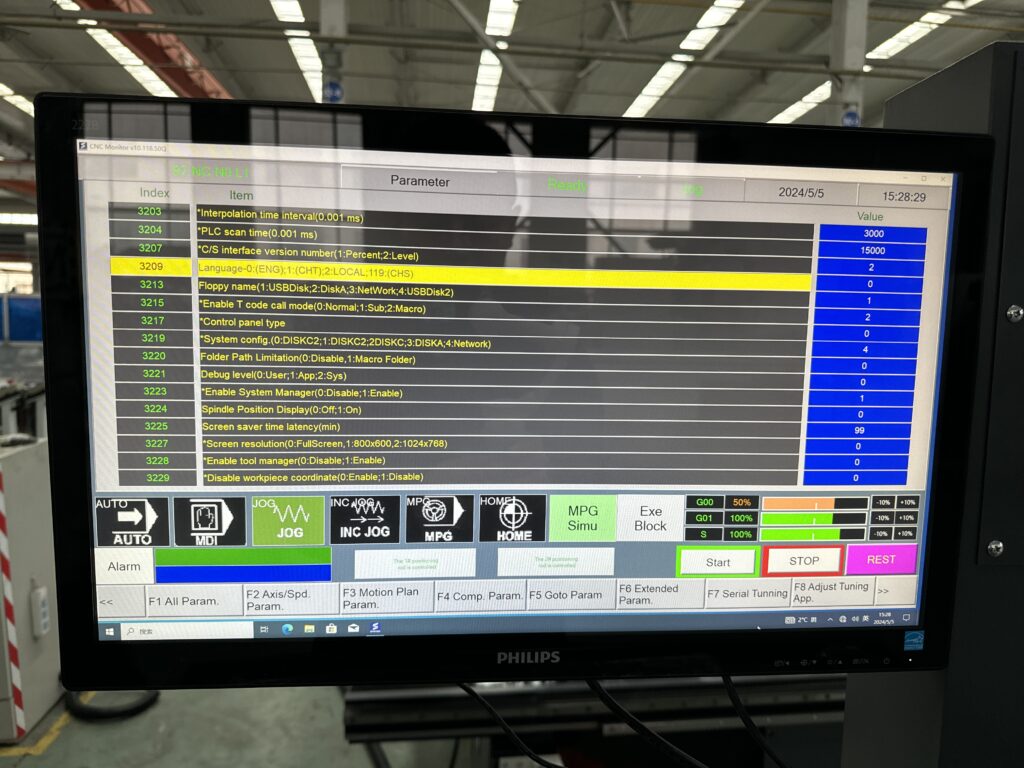

- Syntec Industrial Control System
- Helical Rack & Pinion X,Y Axis, Ball Screw Z Axis
- Heavy-Duty One-Piece All-Steel Frame Plus
Standard
Inquiry For Price$
